GRACO CORP

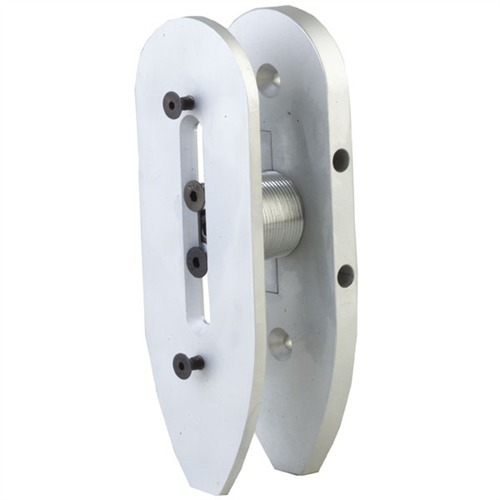

STANDARD ADJUSTABLE BUTT PLATE

352150100

Adjusts For Length, Drop and Rotation

Three-way adjustments for perfect gun fit, higher scores and improved shooting comfort. Base plate mounts to gun, your pad mounts to pad plate and the threaded tube provides a total of 1-1/8" in/out adjustment. Make full turns or stop the rotation anywhere in 360° and lock with the socket head set screws. Slotted top plate allows 1½" vertical adjustment. Slide a Breako Recoil Reducer into the tube for a neat, compact installation. Combine with Graco's Adjustable Comb Hardware to make your own "Try Stock".

SPECS: Matte finished aluminum. 5-13/16" (14.7cm) long x 2" (5cm) wide x 9/16" (14.3mm) thick (adjusted fully "in"). Base plate attaching holes are 3¼" (82.5mm) center-to-center. Standard Model for pumps, over/unders and side-by-sides has threaded tube centered between attaching holes. Require drilling 1-1/8" (28.6mm) hole in stock.

Mer...

Justeras för längd, fall och rotation

Tredjeledsjusteringar för perfekt passform av vapnet, högre poäng och förbättrad skjutkomfort. Basplattan monteras på vapnet, din kolvplatta monteras på padplattan och det gängade röret ger en total justering på 1-1/8" in/ut. Gör hela varv eller stoppa rotationen var som helst i 360° och lås med insexskruvarna. Slitsad toppplatta tillåter 1½" vertikal justering. Skjut in en Breako Recoil Reducer i röret för en snygg, kompakt installation. Kombinera med Gracos justerbara kamhårdvara för att skapa din egen "Prova-på-kolv".

SPECS: Mattanodiserad aluminium. 5-13/16" (14.7cm) lång x 2" (5cm) bred x 9/16" (14.3mm) tjock (justerad helt "inåt"). Fästningshål för basplattan är 3¼" (82.5mm) från centrum till centrum. Standard-modellen för pumpgevär, över-och-under och sidan-vid-sidan har ett gängat rör centrerat mellan fästningshålen. Kräver borrning av ett 1-1/8" (28.6mm) hål i kolven.

Mer...

Kundernas betyg påGRACO CORP STANDARD ADJUSTABLE BUTT PLATE SILVER ALUMINUM

Antal betyg: 5
Från brownells.com: 5
Medelbetyg: 5

Works so good I bought another (2012-02-22)

I had one installed on my Trap Single shot and loved it so much I bought another for my Over/Under. This is a great product and I will buy more as needed.

Got rid of my son's black and blue cheek (2012-05-24)

Easy to install if you take your time. Put the gun at the right level and got rid of the cant the gun had when mounted. My son does not have to adjust his neck so far now to look down the barrel correctly. Got rid of the black and blue cheek.

Great product. Not too hard to install. (2013-05-04)

Used 80" band saw to rough down the shape and then a combo sander to finish it out. Polished w/ bench grinder, cloth wheels and compound. It can be shaped slightly lower on stock (off center) to get an additional amount of pad drop. I have fit six of these so far to all manner of guns (Stoeger, Beretta, Mossberg 500, Rem 11-87) including one on a synthetic stock and all are solid and worth the money! Also fitted standard plate to Beretta AL391Urika II. (I needed the additional pad drop.) Needed to sand out inside of stock for LOP screw but was fast and easy w/ rotary rasp. Won't be able to add recoil reducer tho on some semi autos due to in stock gizmos But if you have 1.5" of clearance from end of stock mounting nuts, this will fit autos.

Just right (2015-07-20)

I mounted this plate on an old single-barrel Winchester 101 Trap that I recently purchased. Stock had been cut so far back to the point it was midway in the slope of the Monte Carlo. It had also been cut at such a "custom" angle that spacers and a thick pad would not have allowed for a proper fit. The gun was absolutely useless for me although I knew that going in.

I installed one of these along with a T550 Pachmayr Trap Pad. Fitting the plates was tedious with much "cut, grind, and try" but the end result is a great fitting stock. I polished the exposed edges to a shiny finish with a sequence of filing, sanding, and rubbing with 0000 steel wool and "Mother's Aluminum Mag Polish." Due to the Monte Carlo being butchered, I had to lower the pad to what appears to be an excessive amount, but with the adjustments on this plate, I was able to get a perfect fit for me. The option of fitting the plate to the size of the recoil pad rather than fitting the recoil pad to a stock or a spacer has allowed for a greater area for recoil to occur. Might help with felt recoil.

You don't have to be a machinist or an expert gunsmith to install this plate, but basic wood and metal working skills are essential. The fitting of the plates to the stock and recoil pad and the use of a forstner bit near an existing hole takes time and patience.

<img width="500" src='/userdocs/reviewimages/e5c55500-699b-4168-94fa-f10482c9b37a.jpg' alt=''>

<img width="500" src='/userdocs/reviewimages/8d391821-3a5f-4665-aa80-c9d47fb58ee1.jpg' alt=''>

Boyd's SS Evolution 10/22 stock (2016-08-17)

I wanted to make the Boyd's ss Evolution stock fit me better. I use it for sage rats and after a day of shooting my neck would start hurting. This adjusts down about 3/4" and twists out out which was perfect to raise the comb of the stock and fit my shoulder. A few mods were needed like drilling holes. I have not shaped it to the stock yet. However, once I do I will duracoat it to match the receiver. I would buy another once I fit this one.

<img width="500" src='/userdocs/reviewimages/deb818c9-be27-44d5-b464-b4f9a43d1b41.jpg' alt=''>

Läs 5 fler betyg på brownells.com

1299 1299 1 SEK

Produktnr: 352150100
GRACO CORP STANDARD ADJUSTABLE BUTT PLATE SILVER ALUMINUM
Tillverkarens produktnummer: 575S Tredjeledsjusteringar för perfekt passform av vapnet, högre poäng och förbättrad skjutkomfort. Basplattan monteras på vapnet, din kolvplatta monteras på padplattan och det gängade röret ger en total justering på 1-1/8" in/ut. Gör hela varv eller stoppa rotationen var som helst i 360° och lås med insexskruvarna. Slitsad toppplatta tillåter 1½" vertikal justering. Skjut in en Breako Recoil Reducer i röret för en snygg, kompakt installation. Kombinera med Gracos justerbara kamhårdvara för att skapa din egen "Prova-på-kolv".

1299 SEK 38 1 299,00 kr *

Levernastid ca. 14-21 dagar.
Mer än 10 st. i centrallagret.

Funktioner: Finish: Silver Make: Universal Gevär Material: Aluminum

Lägg till i inköpslista

Fråga om produkt

Information

Lägg till i inköpslista

Fråga om produkt

Produktinformation

Finish: Silver Make: Universal Gevär Material: Aluminum Leveransvikt: 0,249kg Leveranshöjd: 58mm Leveransbredd: 61mm Leveranslängd: 160mm

Produkt detaljer

Tillverkas i USA

Adjusts For Length, Drop and Rotation

Mer...

Justeras för längd, fall och rotation

Mer...

Kundernas betyg påGRACO CORP STANDARD ADJUSTABLE BUTT PLATE SILVER ALUMINUM

Antal betyg: 5
Från brownells.com: 5
Medelbetyg: 5

Works so good I bought another (2012-02-22)

I had one installed on my Trap Single shot and loved it so much I bought another for my Over/Under. This is a great product and I will buy more as needed.

Got rid of my son's black and blue cheek (2012-05-24)

Great product. Not too hard to install. (2013-05-04)

Just right (2015-07-20)

Boyd's SS Evolution 10/22 stock (2016-08-17)

Läs 5 fler betyg på brownells.com

Kunder har även köpt
Alternativ

BLACKHAWK BLUE 1-1/4" SWIVELS, ONLY

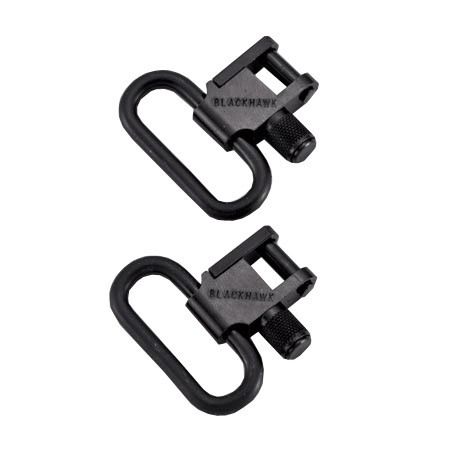

LOK-DOWN™ SLING SWIVELS
