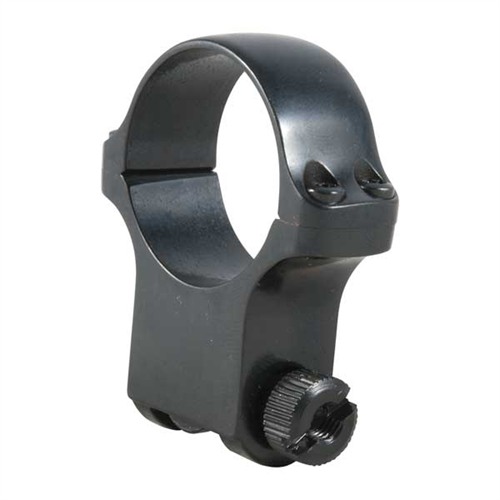

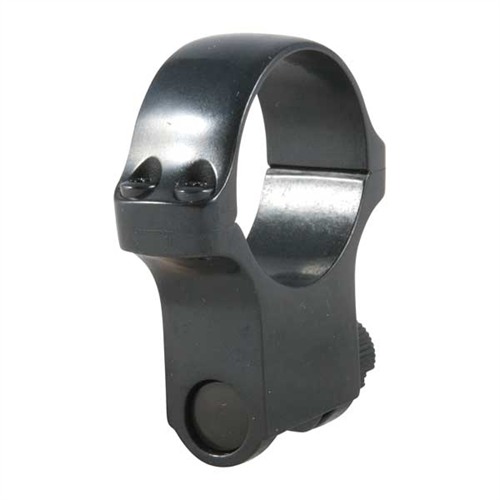

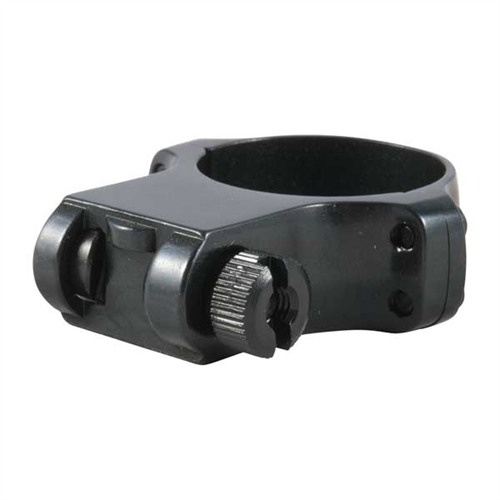

High-quality Ruger factory rings install easily and provide solid, zero-movement scope attachment to Ruger rifles and handguns with integral bases, No. 1 rifles with factory base, and No. 3 rifles with special factory bases available separately. Low, Medium, High, and Extra-High heights in blued carbon steel, natural stainless steel, or stainless with Ruger’s proprietary matte Target Grey® finish. Sold as single rings.
SPECS: Carbon steel, polished blue finish (BL), stainless steel, natural (SS), or Target Grey (TG) finish. Ring heights measured from top of base to bottom of scope tube. Low - .325”. Medium (Med.) - .435”. High - .565”. Extra-High (X-High) - .680”. Offset Ring available in Medium height only. Use two to move scope eye relief back 1”. To move the scope ½” to the rear, use one Offset ring and one #834-000-003 Medium height ring.
RINGS FOR: No. 1, No. 3, Mark II Pistol, 77/22, 77/22 Mag., Mini-14 Ranch Rifle, Mini-Thirty, Redhawk
Available as single rings only. Order two (2) of the same ring for these firearm models.
RINGS FOR: M77, M77 Mark II & Super Redhawk
These models require front and rear scope rings of different heights. On M77/M77 Mark II, the shorter ring always mounts at the front of the receiver and the higher ring at the rear. On the Super Redhawk, the higher ring is always at the front of the frame and the lower ring at the rear.
Available as single rings only. Order one (1) FRONT and one (1) REAR ring from table below.
1" Rings for M77, M77 Mark II & Super Redhawk |
Stock # Front | Ruger Part # Front | Stock # Rear | Ruger Part # Rear | Height | Finish |
#834-000-002 | 3B | #834-000-003 | 4B | Low/Med. | BL |
#834-000-005 | 3K | #834-000-006 | 4K | Low/Med. | SS |
#780-001-250 | 3KTG | #780-001-248 | 4KTG | Low/Med. | TG |
#834-000-003 | 4B | #834-000-004 | 5B | Med./High | BL |
#834-000-006 | 4K | #834-000-007 | 5K | Med./High | SS |
#780-001-248 | 4KTG | #780-001-249 | 5KTG | Med./High | TG |
#834-000-072 | 4BO | #834-000-004 | 5B | Med. Offset/High | BL |
#834-000-004 | 5B | #834-003-002 | 6B | High/X-High | BL |
#834-000-007 | 5K | #834-000-008 | 6K | High/X-High | SS |
#780-001-249 | 5KTG | #780-001-251 | 6KTG | High/X-High | TG |
30mm Rings for M77, M77 Mark II & Super Redhawk |
Stock # Front | Ruger Part # Front | Stock # Rear | Ruger Part # Rear | Height | Finish |
#834-008-001 | 4B30 | #834-008-002 | 5B30 | Med./High | BL |
Högkvalitativa scope ringar för Ruger-vapen
1\" SCOPE RING och 30MM SCOPE RING från RUGER erbjuder en säker och exakt montering av sikten på Ruger-rifles och handeldvapen. Dessa ringar installeras enkelt och ger en solid, rörelsefri fästning av siktet.
Produktbeskrivning
Ruger-fabriksringarna är tillgängliga i olika höjder: Låg, Medium, Hög och Extra-Hög, och finns i blästrad kolstål, naturligt rostfritt stål eller med Rugers egna matta Target Grey®-finish. Ringarna säljs som enskilda enheter.
- Specifikationer: Kolstål, polerad blå finish (BL), rostfritt stål, naturligt (SS) eller Target Grey (TG) finish.
- Ringhöjder: Låg - .325\", Medium - .435\", Hög - .565\", Extra-Hög - .680\".
- Offset ring finns endast i Medium höjd.
För att justera siktets ögonavstånd bakåt 1\", använd två ringar. För att flytta siktet ½\" bakåt, använd en Offset ring och en #834-000-003 Medium höjd ring.
RINGAR FÖR:
- No. 1, No. 3, Mark II Pistol, 77/22, 77/22 Mag., Mini-14 Ranch Rifle, Mini-Thirty, Redhawk
- M77, M77 Mark II & Super Redhawk (kräver olika höjder på fram- och bakringarna).
Beställ en (1) FRAM- och en (1) BAK-ring från tabellen nedan.
| Stock # |
Ruger Part # Framsida |
Stock # Baksida |
Ruger Part # Baksida |
Höjd |
Finish |
| #834-000-0023B |
#834-000-0034B |
#834-000-0053K |
#834-000-0064K |
Låg/Med. |
BL |
| #780-001-2503K |
#780-001-2484K |
#780-001-2484K |
#780-001-2495K |
Låg/Med. |
TG |
| #834-000-0034B |
#834-000-0045B |
#834-000-0064K |
#834-000-0075K |
Med./Hög |
BL |
