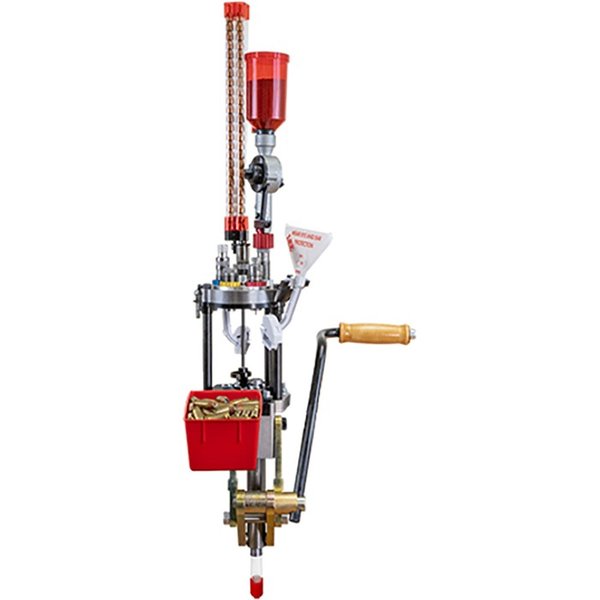

ULTIMATE TURRET PRESS KIT The Ultimate Turret press retains the powerful Big Press linkage and circumferential tool head support. Perimeter support sets all Lee turret press apart from others. Through ram primer disposal keeps grit and grime away from the massive steel base and ram. The Ultimate replaces features changeable tool carrier available in three, four, five and six die positions. The tool carrier is precision machined on all surfaces and closely fitted to the steel support ring that surrounds the indexable tool head, having just enough clearance to allow free indexing and enough radial clearance to allow perfect die alignment. Perimeter support eliminates any die tipping and provides the best possible accuracy. Each die position is a quick change, provided by the Lee Breech lock system. Now you can remove your dies and store them in your fitted die box without disturbing the settings. Tool carrier can be quickly changed by removing three alloy steel socket head bolts, wrench included. Every downstroke of the press automatically advances the carrier to the next tool position. The new index mechanism has only one moving part and is overload protected making it nearly indestructible. Should it become damaged the drive clutch can be replaced in seconds without tools. The final and exact positioning of the tool head is provided by a shot pin attached to the ram. The Ultimate now includes a case ejector to whisk away your finished round to the included bin. No adjustments are required, and the ejector is unbreakable. The Big Press all-steel compound toggle linkage found on our 50 BMG reloading press sizes the most difficult cases with ease, with sufficient stroke to load the longest magnum cartridges. Ergonomics are excellent with the formed lever and roller handle. The balanced lever design is easy to operate and will not drop and pinch a finger. The finishing touch, a tool rack surrounding the steel tool carrier holds die wrench, ¼ hex wrench, alternate primer arm and Safety Prime. FEATURES: Five stations allow any brand of die be used -- inline bullet feed dies, powder check dies and such. Simple and reliable automatic indexing -- no tools required and never requires adjustment. Stroke and clearance sufficient for largest magnum rifle cases. Uses the same all steel linkage found on our Classic Cast 50 BMG press. Spent primer tube collects dirty, gritty spent primers. All dies securely fastened in the 5-hole turret with Lee Smart Lock bushings. Safety Prime system - simple, reliable and safe with any brand or size of primer. Cartridge changeover in seconds, including primer size with no adjustments. Automatic case ejector reliably whisks away your completed round to the included ammo bin. Press includes combination tool rack, bin bracket, along with free ammo bin. SECIFICATIONS: Maximum cartridge overall length: 3" automatic index | 4" manual index Base material: Steel Columns material: Steel Ram: Steel Ram diameter: Over 1" Linkage: Steel Tool head material: Steel Die size accepted: 7/8" x 14 Number of die mounting holes : 5 Breech Lock Quick Change bushings: Yes, 5 included Priming feature: Yes, no primer brand restrictions Spent primer collection tube: Yes Country of origin: Proudly made in USA
Ultimat Turrent Press Kit - den perfekta lösningen för dina omladdningsbehov!
ULTIMATE TURRET PRESS KIT är den ultimata omladdningspressen som kombinerar kraften hos Big Press-länkage med ett cirkumferentiellt stöd för verktygshuvudet. Perimeterstödet skiljer Lee turrentpressar från andra på marknaden.
Produktbeskrivning
Genom ramens primeravfallshantering hålls skräp och smuts borta från den massiva stålbasen och ramen. Den ultimata modellen ersätter den föränderliga verktygstransportören, som finns i tre, fyra, fem och sex dies positioner. Verktygstransportören är precisionsbearbetad på alla ytor och passas noggrant till den stålstödring som omger det indexerbara verktygshuvudet, med precis tillräckligt med spel för att möjliggöra fri indexering och tillräckligt radialspel för perfekt diejustering.
- Perimeterstödet eliminerar die-tipping och ger bästa möjliga noggrannhet.
- Varje dieposition är en snabb förändring, tack vare Lee Breech lock-systemet.
- Du kan enkelt ta bort dina dies och förvara dem i din anpassade diebox utan att störa inställningarna.
- Verktygstransportören kan snabbt bytas ut genom att ta bort tre skruvar av legerat stål, nyckel ingår.
- Varje neddragning av pressen avancerar automatiskt transportören till nästa verktygsposition.
Den nya indexmekanismen har endast en rörlig del och är överbelastningsskyddad, vilket gör den nästan oförstörbar. Om den skulle skadas kan drivringskopplingen bytas ut på några sekunder utan verktyg. Den slutgiltiga och exakta positioneringen av verktygshuvudet tillhandahålls av en skottpinne fäst vid ramen. Den ultimata modellen inkluderar nu en hylseutkastare som snabbt för bort din färdiga patron till den medföljande lådan. Inga justeringar krävs, och utkastaren är okrossbar.
Funktioner
- Fem stationer möjliggör användning av vilken die som helst - inline bullet feed dies, powder check dies och liknande.
- Enkel och pålitlig automatisk indexering - inga verktyg krävs och kräver aldrig justering.
- Slag och clearance tillräckligt för de största magnumgevärspatronerna.
- Använder samma helt stål länkage som finns på vår Classic Cast 50 BMG press.
- Spent primer tube samlar in smutsiga, grusiga spent primers.
- Alla dies är säkert fästa i den 5-håls turrenten med Lee Smart Lock bushings.
- Safety Prime-system - enkelt, pålitligt och säkert med vilken primer som helst.
- Patronbyte på några sekunder, inklusive primerstorlek utan justeringar.
- Automatisk hylseutkastare för borttagning av din färdiga patron till den medföljande ammo-lådan.
Specifikationer
- Maximal patronlängd: 3" automatisk index | 4" manuell index
- Basmaterial: Stål
- Kolonnmaterial: Stål
- Ram: Stål
- Ramdiameter: Över 1"
- Länkage: Stål
- Verktygshuvudmaterial: Stål
- Die storlek accepterad: 7/8" x 14
- Antal die-monteringshål: 5
- Breech Lock Quick Change bushings: Ja, 5 inkluderade
- Priming-funktion: Ja, inga begränsningar för primer-märke
- Spent primer insamlingsrör: Ja
- Ursprungsland: Stolt tillverkad i USA
