MAGPUL MOE QUICK DETACH BIPOD FOR M-LOK Magpul offered a variety of bipods for quite some time, but none have attached as simply and quickly as the MOE QD Bipod for M-LOK. This new bipod provides shooters a quick-attach and detach function when using guns with an M-LOK hand guard or forend; by speeding up the attachment process via the integral attachment knob, you can get support when firing faster than ever before. To attach the bipod, simply insert the M-LOK stud into the M-LOK slot, rotate the bipod 45° counterclockwise so the stud is perpendicular to the M-LOK slot, and tighten the adjustment knob to securely fasten against the forend. No tools required. Aside from the quick, simple attachment method, the bipod is almost 40% lighter than some of thier existing bipods. The injection-molded construction won’t deform or break under pressure, and it provides a consistent, stable platform from which to shoot. The bipod plate – made from the same injection-molded material as the bipod itself – provides a solid mounting surface and features two (2) additional M-LOK lugs to promote proper alignment after installation, as well as increased stability and durability during recoil. The bipod is also equipped with a low-profile sling stud on the rear to allow sling attachment for easy carry and transportation of the firearm. The MOE QD bipod has a low stack height of 1.7” when folded, giving it a streamlined profile when the legs are stowed. When the legs are needed, they deploy and stow with the push of a button, snapping and locking into position. The legs extend from 7" to 10" and are adjusted easily and independently via a button located at the top of each leg. Within this adjustment range, there are seven (7) ½" spaced locking detents to fine tune the bipod’s deployed height. Additionally, the bipod’s soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch should shooters want to change them to something different (the bipod accepts most Atlas-pattern bipod feet). FEATURES: QUICK, SIMPLE INSTALLATION: The MOE QD Bipod installs via an adjustment knob Minimizes installation requirements since no other hardware is required COMPACT, LIGHTWEIGHT: 40% lighter than some other Magpul bipods Stack height of 1.7”; when extended legs measure 7”-10” in 0.5” increments VERSATILE LEGS AND FEET: Soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch Legs accept most Atlas-pattern bipod replaceable feet to best match the needs of your environment SPECIFICATIONS: Attachment: M-LOK Slots Materials: Polymer, steel Height, max: 10 in. Pan and Tilt: No Weight: 9 oz. Made in the USA.
Snabb och enkel montering av MOE QD bipod för M-LOK!
MAGPUL MOE QUICK DETACH BIPOD FÖR M-LOK är den perfekta lösningen för skyttar som söker en snabb och praktisk bipod. Med en lättviktsdesign och enkel installation, ger denna bipod dig stöd när du behöver det som mest.
Produktbeskrivning
Magpul har erbjudit en mängd olika bipods under en längre tid, men ingen har fästs så enkelt och snabbt som MOE QD Bipod för M-LOK. Denna nya bipod erbjuder skyttar en snabb fästanordning och avtagning när de använder vapen med en M-LOK handskydd eller förhand. Genom att snabba upp fästeprocessen via den integrerade fästknappen kan du få stöd när du skjuter snabbare än någonsin tidigare.
För att fästa bipoden, sätt helt enkelt in M-LOK-studsen i M-LOK-spåret, rotera bipoden 45° moturs så att studsen är vinkelrät mot M-LOK-spåret, och dra åt justeringsknappen för att säkert fästa mot förhand. Inga verktyg krävs.
Utöver den snabba och enkla installationsmetoden är bipoden nästan 40% lättare än några av deras befintliga bipods. Den injektionsformade konstruktionen deformeras eller går inte sönder under tryck, och den ger en konsekvent, stabil plattform för att skjuta ifrån. Bipodplattan – tillverkad av samma injektionsformade material som bipoden själv – ger en solid monteringsyta och har två (2) extra M-LOK-luggar för att främja korrekt justering efter installation, samt ökad stabilitet och hållbarhet under rekyl.
Bipoden är också utrustad med en lågprofil sling-stud på baksidan för att möjliggöra slingfäste för enkel bärning och transport av vapnet.
Funktioner
- SNABB, ENKEL INSTALLATION: MOE QD Bipod installeras via en justeringsknapp. Minimerar installationskraven då ingen annan hårdvara behövs.

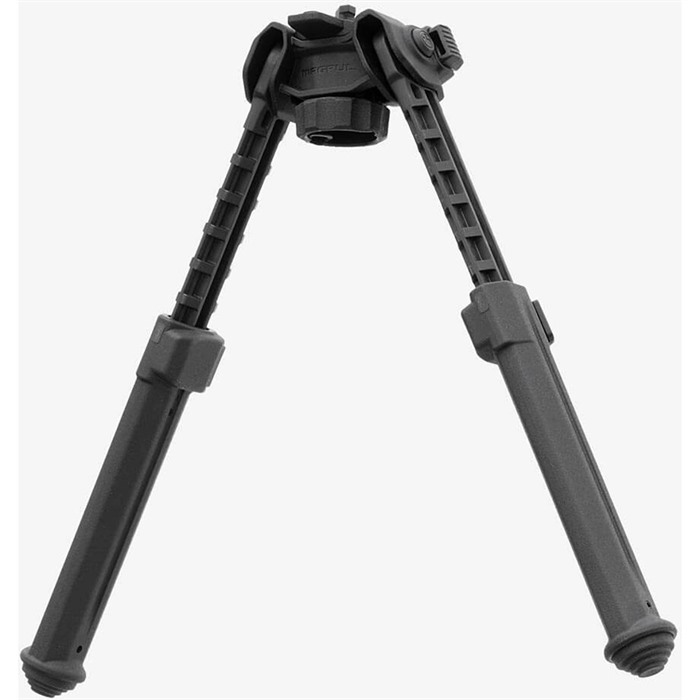

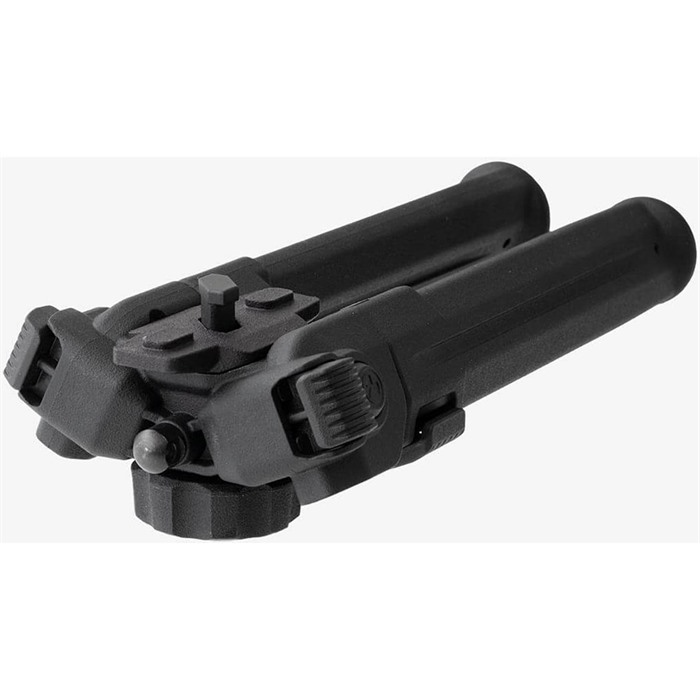

- KOMPAKT, LÄTT: 40% lättare än andra Magpul bipods. Stapelhöjd på 1.7”; när benen är utsträckta mäter de 7”-10” i 0.5” intervall.
- MÅNGSIDIGA BEN OCH FÖTTER: Mjuka, trappade, halkfria gummifötter greppar ett brett spektrum av skjutytor; fötterna kan också enkelt tas bort med en rullstiftspunch. Benen accepterar de flesta ersättningsfötterna i Atlas-mönster för att bäst matcha dina behov i miljön.
Specifikationer
- Fäste: M-LOK Spår
- Material: Polymer, stål
- Höjd, max: 10 tum
- Panning och Tilt: Nej
- Vikt: 9 oz
- Tillverkad i: USA
