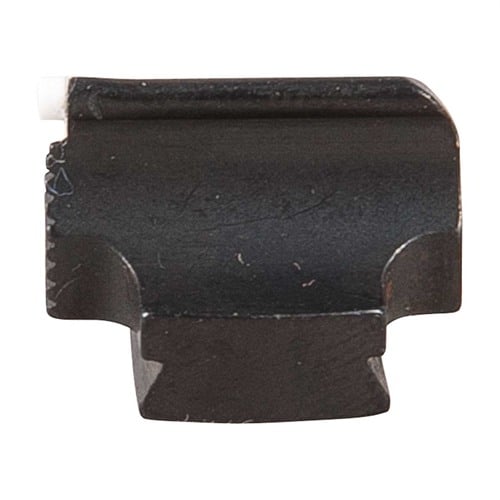

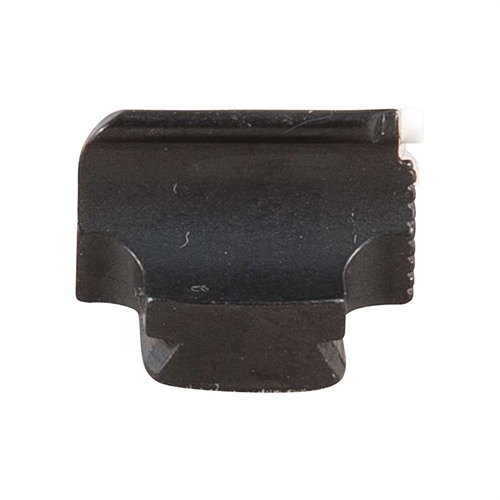

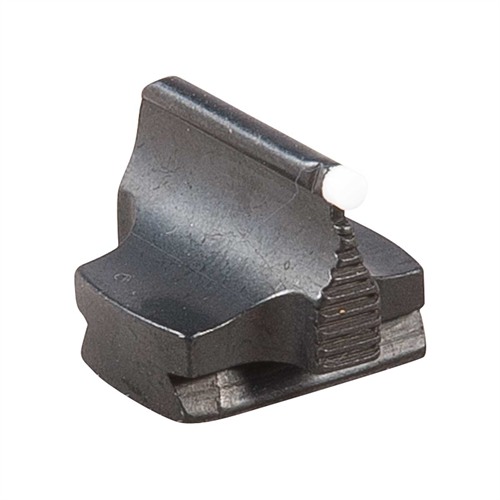

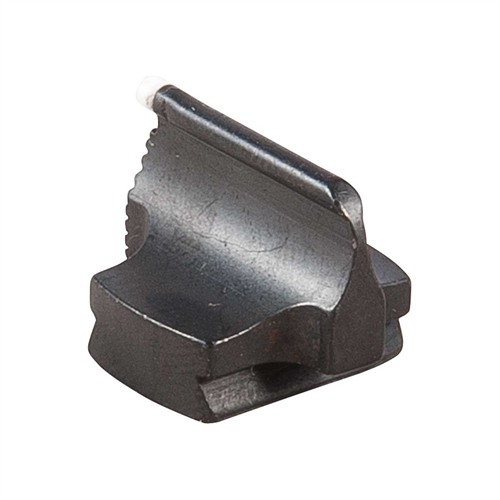

Precision-made sights for rifles, both with and without ramp bases. The blade is gracefully contoured, sloping toward the front. Made of steel and nicely blued to look good on any gun. The BARREL MOUNTED FRONT SIGHT has rounded base sides for guns with the front sight dovetail cut directly into the barrel. “W” sights have a 17/32" (13.5mm) wide base. Barrel front sights are available with three beads, Pope’s Island Gold, flat faced gold available in 1/16" (1.6mm) diameter. Ivory, flat faced white polymer in 1/16" (1.6mm) diameter.
SPECS: Steel, blue, polished finish. .620" (15mm) long. ORDERING: Select the sight height required using the Marbles and/or Williams charts and determine which Sight Style, Bead Type and Width is needed from the info above. Using the chart beside this copy, find the correct Marbles Sight and note the 9 digit Ordering No. For example: If you need a Contoured Ramp Front Sight, “MR” width, .290" (7.4mm) high, with a 1/16" (1.6mm) gold bead, follow the Height listing to the .290" figure, read across on the “MR” line to the 1/16" gold bead and note the number: 579-502-911. 1" = (2.54cm)
Precision och kvalitet för din bössa
RIFLE BARREL MOUNTED 1/16" 45-W FRONT SIGHT är en noggrant tillverkad sikte av högsta kvalitet, designad för att passa både med och utan rampbaser. Bladet är elegant utformat och lutar framåt.
Produktbeskrivning
Tillverkad av stål och vackert blånerad för att se bra ut på vilken bössa som helst. BARREL MOUNTED FRONT SIGHT har rundade baser för vapen med siktesdovetail som är skuren direkt i pipan. “W” sikten har en basbredd på 17/32" (13,5 mm). Pipfrontsikten finns tillgängliga med tre olika pärlor: Pope’s Island Gold, platt guld med en diameter på 1/16" (1,6 mm) samt elfenben och platt vit polymer i 1/16" (1,6 mm) diameter.
Specifikationer
- Material: Stål
- Ytbehandling: Blå, polerad finish
- Längd: .620" (15 mm)
Beställning
Välj den nödvändiga sikthöjden med hjälp av Marbles och/eller Williams diagram och fastställ vilken Sikttyp, Pärltyp och Bredd som behövs utifrån informationen ovan. Använd diagrammet bredvid denna text för att hitta rätt Marbles-sikte och notera det 9-siffriga beställningsnumret. Till exempel: Om du behöver ett Contoured Ramp Front Sight, “MR” bredd, .290" (7,4 mm) hög, med en 1/16" (1,6 mm) guldpärla, följ höjdlistan till .290" siffran, läs över på “MR” raden till 1/16" guldpärlan och notera numret: 579-502-911. 1" = (2,54 cm)
