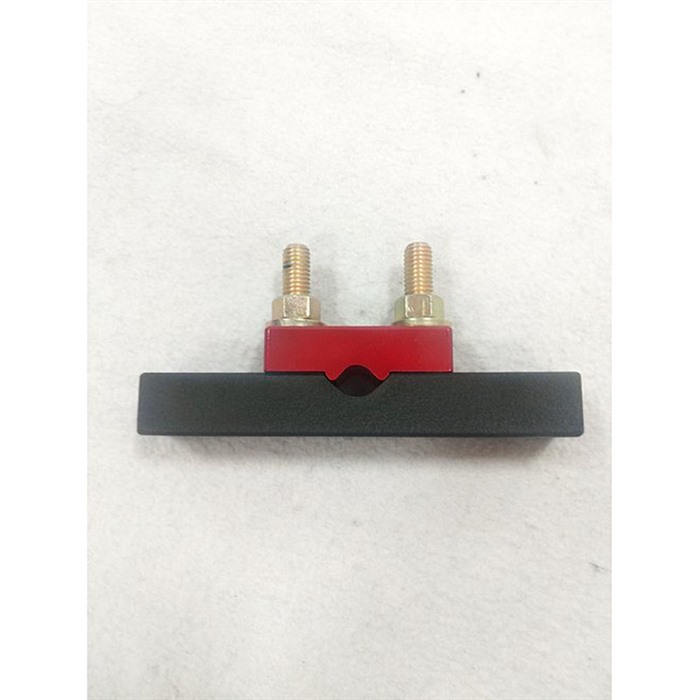

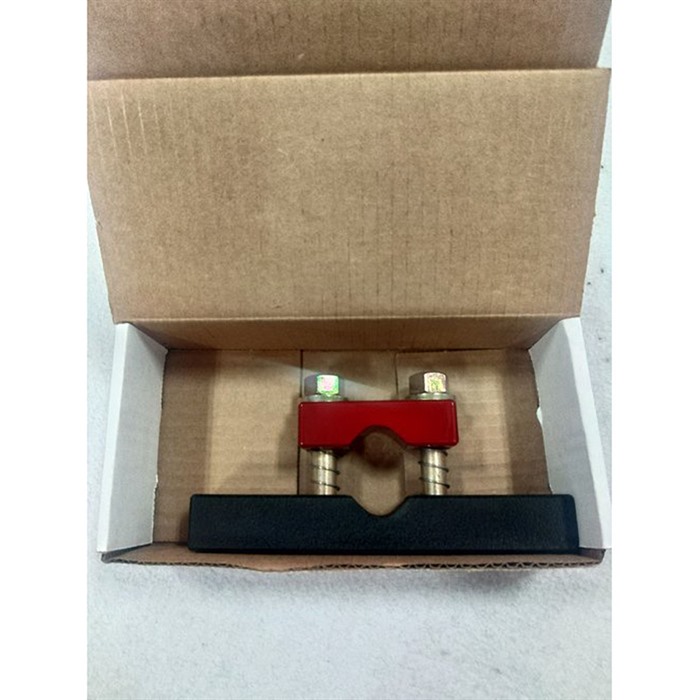

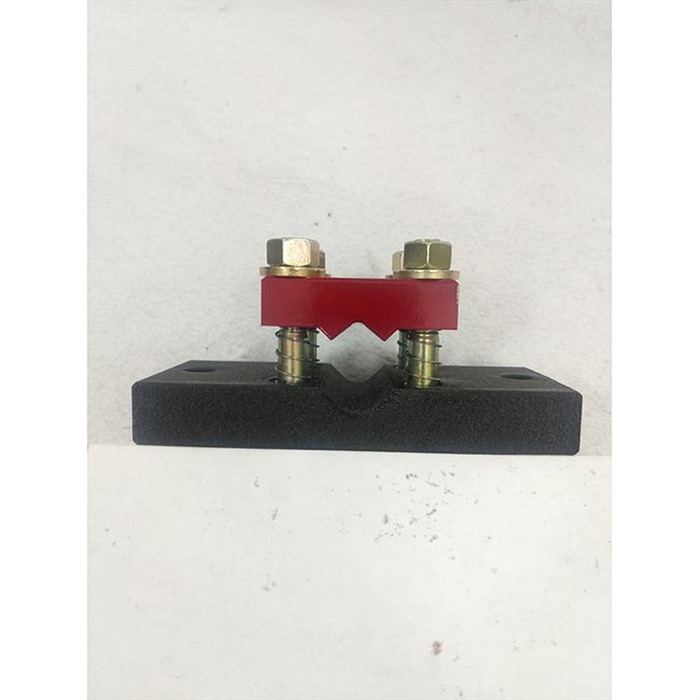

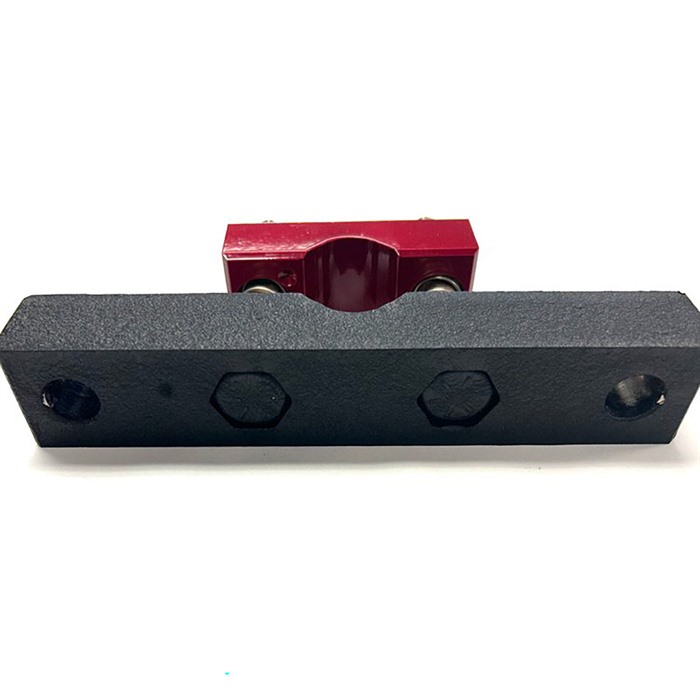

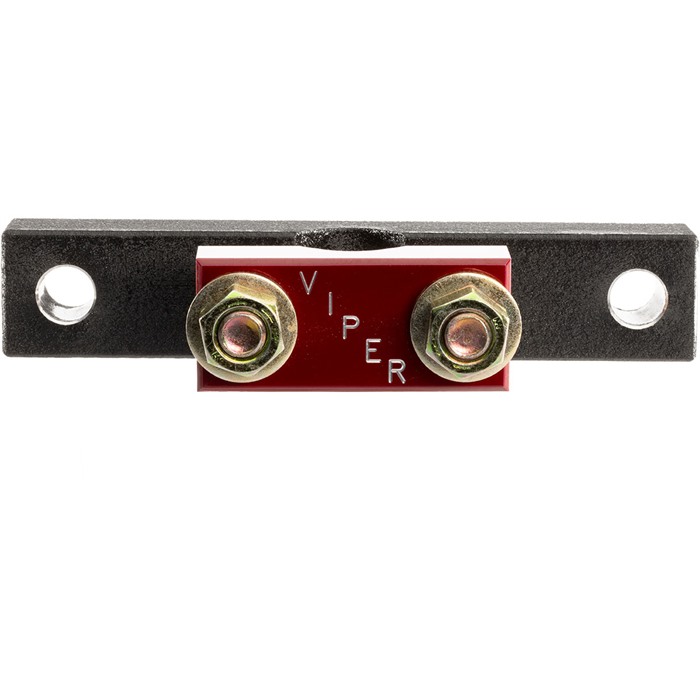

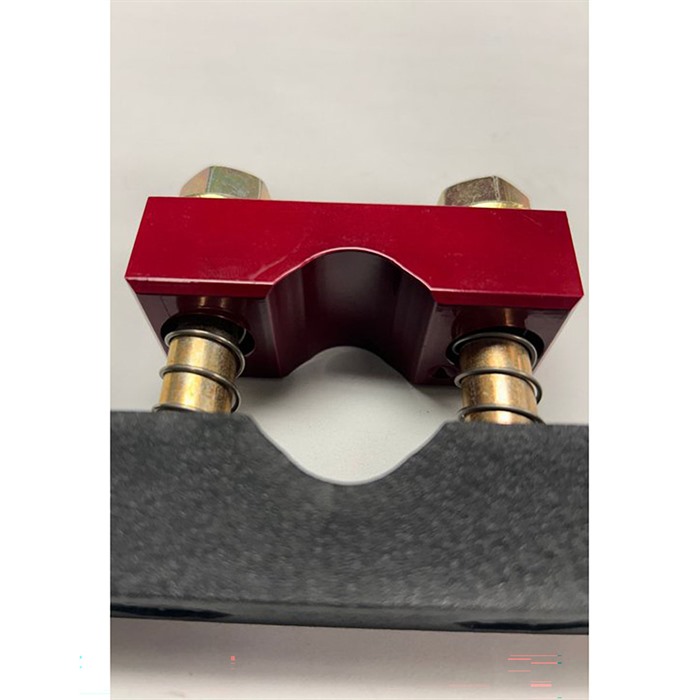

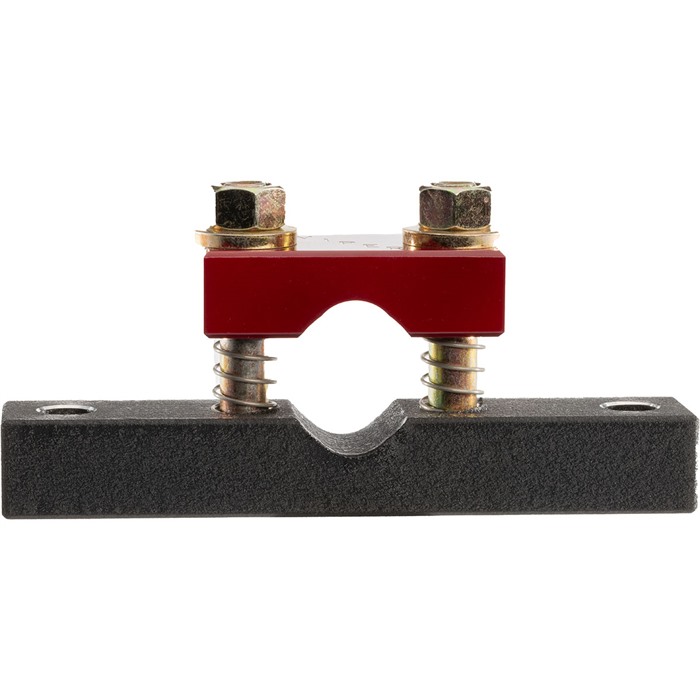

VIPER INTERNATIONAL-PYTHON HEAVY DUTY BARREL VISE With the birth and rise of the Carbon Fiber barrel shooters and home hobbyists have asked me about a barrel vise for them. After several trials, failures and some scrap parts the Python HD is here! This vise can also be ordered with the standard top or Sporter top or with both tops! the standard top will grip barrels diameters from .75" up to 1.4". The Rimfire/Sporter top will grip barrel diameters from .475" up to 1". Please read the bottom of this: This is a HEAVY-DUTY barrel vise! Some of the features of the Python HD: It is 1.3 INCHES WIDE. This barrel vise will grab hold of most, if not all current production carbon fiber barrels out there on the receiver/action end of the barrel. No more worries about crushing the carbon fiber on your new barrel. The top is 7/8” thick. The standard Viper barrel vise top is 3/4” thick. Thicker material provides even more strength to the top. Top has an improved counterbore allowing the barrel vise top to “can’t”/tilt. This will allow for this vise to grip even on Palma barrels. This vise will grip diameters from .750” to 1.4”. A larger range than the Standard Viper barrel vise. The Rimfire/Sporter top will grip barrel diameters from .475" up to 1". The top and bottom of the vise incorporates 4 diameters of very common barrel sizes. .875”, 1.2”, 1.3”, and 1.4” diameter barrels. This feature provides more surface contact for gripping the barrel. This helps with other size barrels as well. The bolts are truly GRADE 8 and will handle torque of up to 94 Ft/lbs. The heavier duty bolts are a major upgrade from the studs used in the original Viper Barrel Vise. Wrapping the barrel is recommended when torquing the nuts over 50 ft/lbs. The Python HD uses HEX HEAD bolts! If for some reason one of the bolts get damaged it can be easily replaced if needed. These bolts are also peened in place during production to prevent them from falling out. The Python HD has the same mounting hole to hole dimensions as the original Viper Barrel Vise. No need to drill new holes in your workbench! They have found when working on rifles manufactured from some companies Howa, Remington or Tikka that the action can be very tight. This is not bad, it’s just how they make their products. Viper recommends wrapping barrels of Howa, Remington and Tikka. Viper advises wrapping the barrel when working with rifles where the torque of the action to barrel is unknown. Viper also advises wrapping the barrel when torquing the nuts over 50 lbs. This will help to prevent damage to the powder coat finish. This will help your Viper Barrel Vise last for years.
En kraftfull och hållbar verktyg för din vapentillverkning!
VIPER INTERNATIONAL-PYTHON HEAVY DUTY BARREL VISE är den perfekta lösningen för både kolsyre- och hobbyentusiaster som söker en pålitlig barrel vise. Efter flera tester och förbättringar är Python HD här!
Denna vise kan beställas med antingen standardtopp, Sporter-topp eller båda! Standardtoppen greppar pipor med diametrar från .75" upp till 1.4", medan Rimfire/Sporter-toppen greppar pipor med diametrar från .475" upp till 1".
Observera: Detta är en HEAVY-DUTY barrel vise!
Egenskaper hos Python HD:
- 1.3 TUM BRED: Denna barrel vise greppar de flesta, om inte alla, nuvarande kolsyrepipor vid mottagar-/åtgärdsänden av pipan. Ingen mer oro för att krossa kolsyrepipan på din nya pipa.
- Toppen är 7/8” tjock: Standard Viper barrel vise-toppen är 3/4” tjock. Tjockare material ger ännu mer styrka.
- Förbättrad motborr: Tillåter att barrel vise-toppen kan "kantra" för att greppa även Palma-pipor.
- Greppdiametrar: Från .750” till 1.4”, vilket ger ett större spann än standard Viper barrel vise.
- Inkluderar 4 vanliga pipdiametrar: .875”, 1.2”, 1.3”, och 1.4” för bättre greppytor.
- GRADE 8 bultar: Klarar vridmoment upp till 94 Ft/lbs. Tjockare bultar är en stor uppgradering från de som användes i den ursprungliga Viper Barrel Vise.
- HEX HEAD bultar: Enkla att byta ut om de skadas. De är även fastsatta under produktionen för att förhindra att de faller ut.
- Kompatibel med original Viper Barrel Vise: Ingen borrning av nya hål i din arbetsbänk behövs!
Vid arbete med gevär från tillverkare som Howa, Remington eller Tikka kan åtgärden vara mycket tight. Viper rekommenderar att linda pipan vid arbete med dessa märken och när vridmomentet överstiger 50 lbs för att skydda lackfinishen. Detta kommer att säkerställa att din Viper Barrel Vise håller i många år framöver.
