Produktinformation
- Modell:
700
- Vapentyp:
Remington
- Leveransvikt: 0,136kg
- Leveranshöjd: 20mm
- Leveransbredd: 86mm
- Leveranslängd: 175mm
- UPC: 050806008373
Produktnr: 080097701
050806008373 Fjäderbelastat verktyg ger konstant, rakt bakåt tryck för att hålla bolt lugs kvadratiska mot mottagaren medan man lappar med 600 till 800 grit, silikonkarbid slipmedel. Ger bättre resultat än enbart tumtryck. Utbytbara gängade ärmar passar populära åtgärder som listas nedan.Restorder. Skickas när den finns i lager. Leveranstid ca 4-12 veckor från centrallagret.

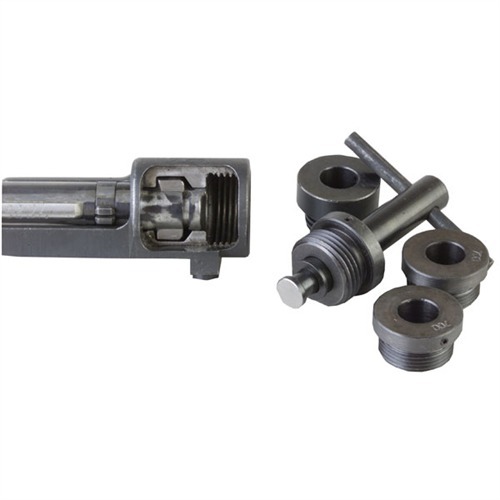

Denna 2-delade bolt lapping kit för Remington 700 från BROWNELLS är det perfekta verktyget för att säkerställa att låsningsluggarnas urtag passar perfekt.
Det fjädrade verktyget ger konstant, rakt tryck bakåt för att hålla bolt lugs kvadratiska mot mottagaren medan du slipar med 600 till 800 grit, silikonkarbid-abrasiv. Detta ger bättre resultat än enbart tryck med fingrarna. De utbytbara gängade ärmarna passar populära modeller som listas nedan.
M14/M1A Set-ärmen inkluderar en plunger med stor diameter och ett speciellt lappinghandtag som krävs för dessa modeller. Mauser Large-ärmen passar stora ring Mauser-actions. Mauser Small passar små ring Mauser-actions. Savage Small-ärmen passar Savage-actions i alla kalibrar utom Rem Ultra Mag (RUM), Rem SA Ultra Mag (RSUM) och Win Short Mag (WSM). Savage Large-ärmen passar Savage-actions endast i RUM, RSUM och WSM kalibrar.
One Gun Set innehåller bolt tool body, plunger och rätt storlek på ärmen för den angivna modellen. M14/M1A One Gun Set innehåller bolt tool body, plunger med stor diameter, rätt storlek på ärmen, samt ett speciellt lappingverktyg unikt för M14/M1A/M1 Garand. Kitet innehåller alla verktyg som behövs för att slipa alla modeller som listas i tabellen. *Specialpris, se nedan.
700
Remington
Very nice fit of parts. 2015-08-31
I bought this one-gun kit after trying to use the plunger body from the M14/M1/M1A kit. It did not fit a sleeve I had bought for the Large Ring Mauser. After receiving this kit with it's plunger body I then began trying all the parts one at a time.
Both plunger bodies are 0.5620" and the sleeves are 0.5625 except the M14, it was 0.563. There were little burrs on the plunger body of the M14 kit that made me think it would not fit the different sleeves. All fit well after a little lapping.
I plan on using the bolt lug lapping tool for several rifles I am building. After using the tool I believe I can use it to square the bolt face on a Mauser Large Ring VZ-24. After reaming the sleeve from existing 9/16" to a 5/8" I will press fit a drill bushing that is 5/8 x 3/8 and use the Mason Reamer Burr which has a 3/8" shaft. The Burr has been ground to 0.3740 to 0.3745. It has a buttery slip fit in the Drill Bushing.
Mauser threads are at a 55 deg pitch and not easy to find. Brownells sells the sleeve with the right threads for the '98 and the face truing Burrs. All you need is the drill bushing, the undersized drill, and the reamer to make the altered sleeve to be able to Lapp the lugs with the original unaltered sleeve, and true the face of your bolt with your altered sleeve. After, of course, you check that the receivers threads are true to the action. This can be checked with a mandrel which Brownells has too. This can be done for any rifle that Brownells has a sleeve for. Happy Gunsmithing, JL.
